Star 5 Frigo 2 Plus - Plus +/+

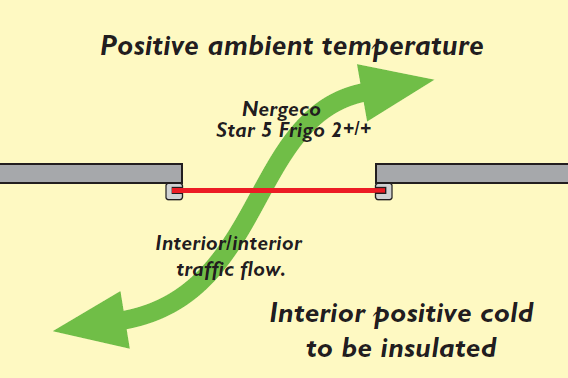

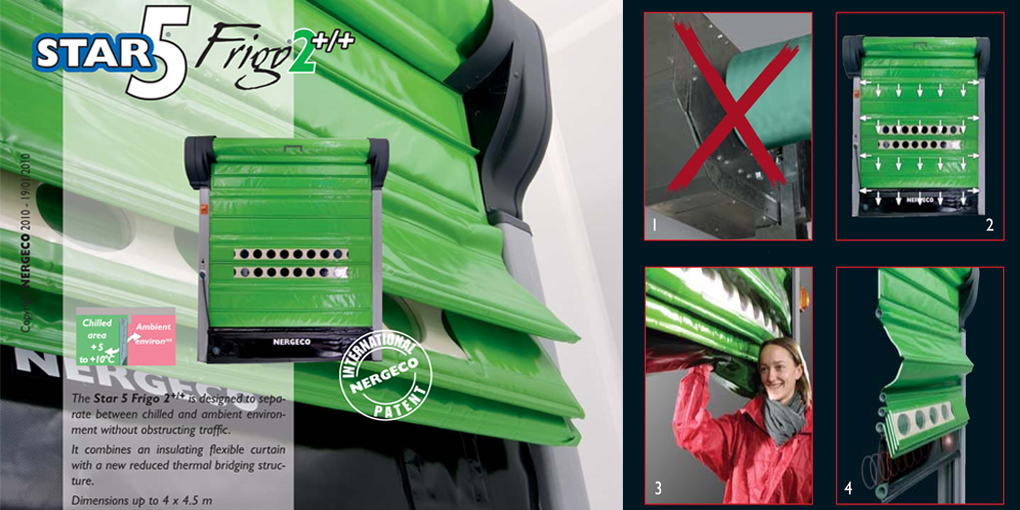

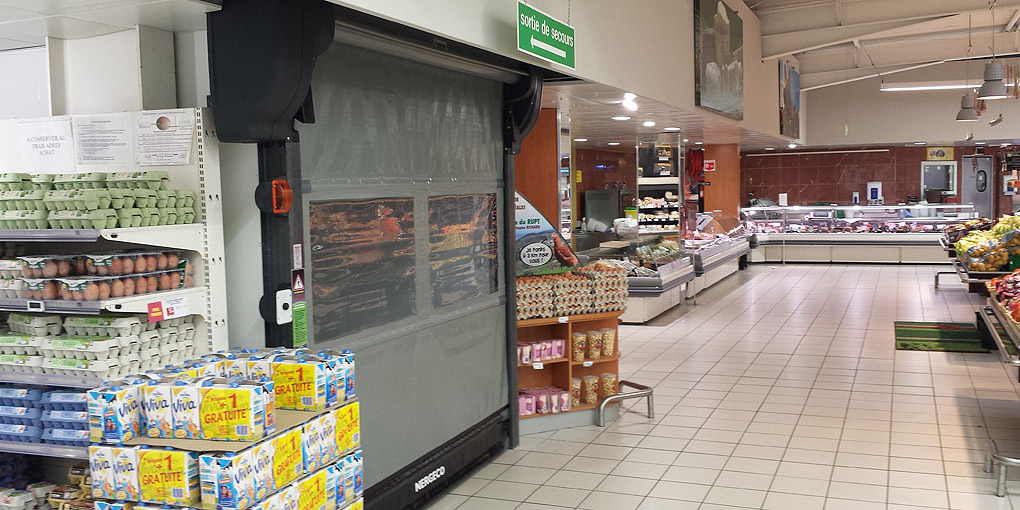

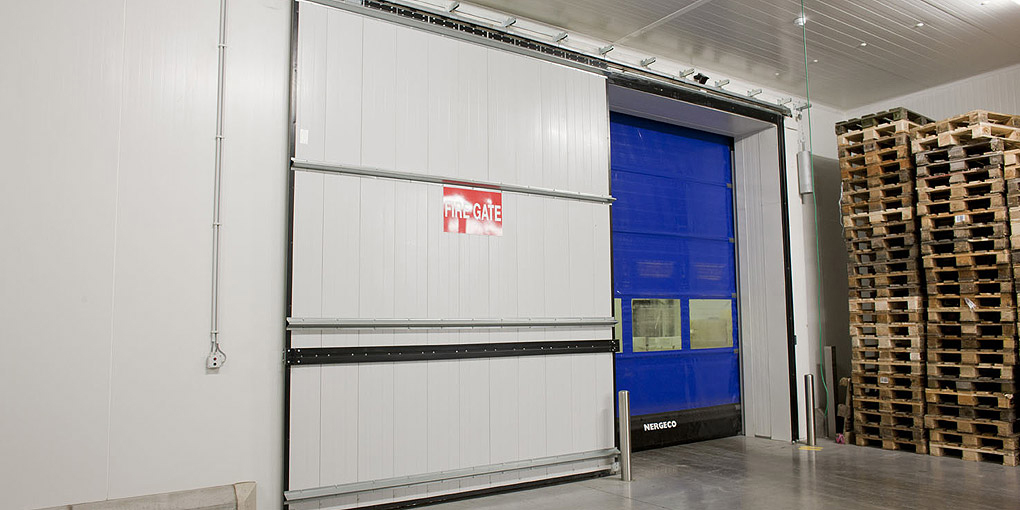

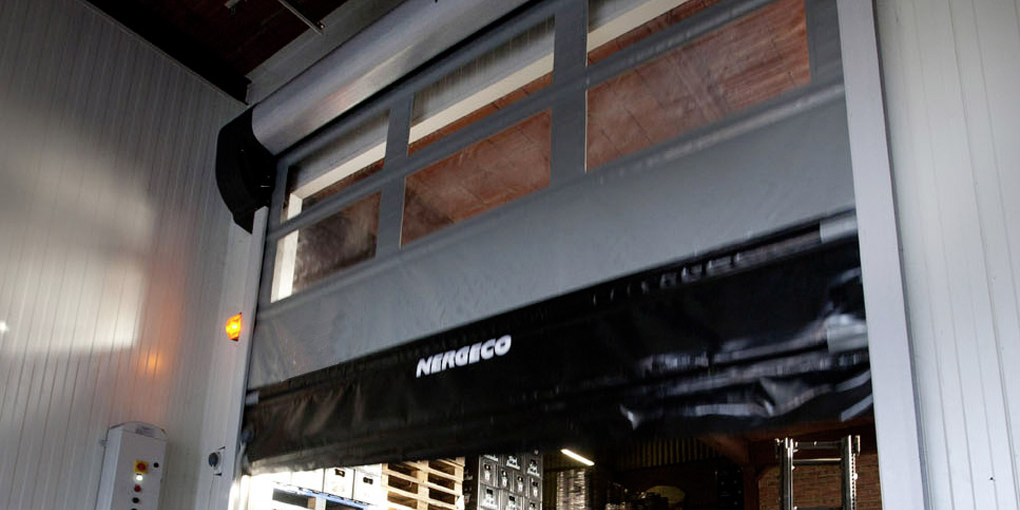

The Star 5 Frigo 2+/+ is designed to separate between chilled and ambient environment without obstructing traffic. It combines an insulating flexible curtain with a new reduced thermal bridging structure.

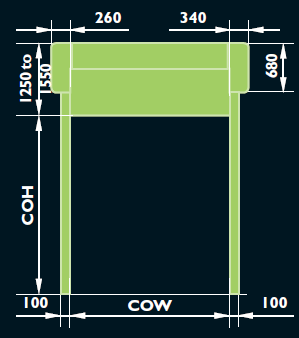

Dimensions up to 4 x 4.5 m
Also available in the same product line: Star 5 Frigo 2+/- for for insulation between freezer and chilled area, Star 5 Frigo 1 to divide two freezer areas and Star 5 Frigo 3 for enhanced insulation between freezer and ambient area.

Installation

The independent structure is fitted in the opening, inside or outside of the volume to be insulated.

Operation

  • Opening:

    “just in time”, manual or automatic with all kinds of detection, at a speed of 0.6 to 0.8 m/s based on curtain dimension.

  • Closing:

    “fast”, manual or automatic with an adjustable timer, at a speed of 0.8 to 0.6 m/s.

  • Optional power-free opening:

    ratchet handle, crank handle or counterbalance weight.

  • Motor unit:

    fitted on the left or right side - Power from 1.1 to 2.2 kW based on selected options - IP 54.

  • Power supply:

    230/400 V tri-phase + earth connection, 50 Hz, upstream circuit breaker protection. 300 mA.

Insulation

  • Closed door:

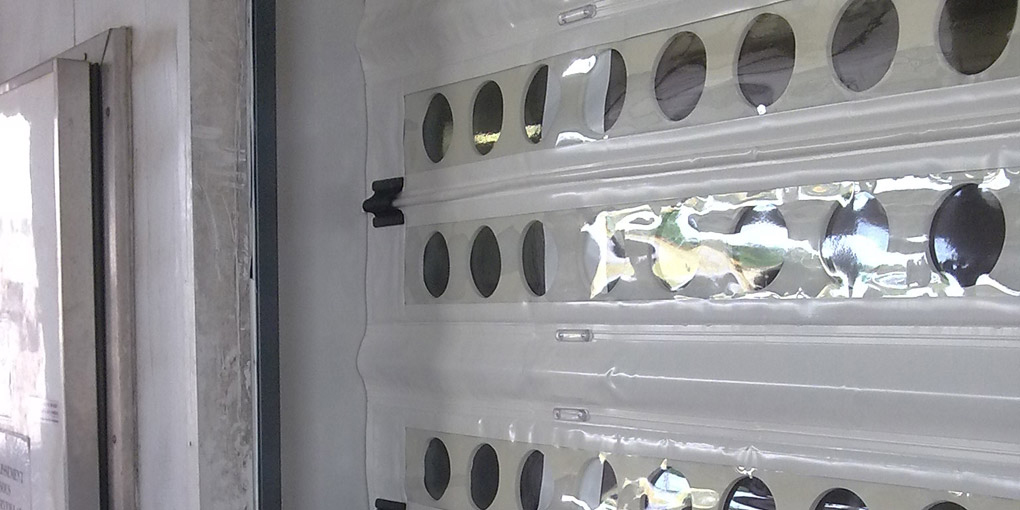

    the flexible double layer curtain with integrated air mattress (U=2.38W/m².K) has covered edges® on the reduced thermal bridging sructure, from top to bottom.

  • At each cycle:

    it reduces the opening time per cycle thanks to its “just in time®” opening and “fast” closing with enhanced safety.

crank handle or counterbalance weight.
  • Motor unit: fitted on the left or right side - Power from
    1.1 to 2.2 kW based on selected options - IP 54.
  • Power supply: 230/400 V tri-phase + earth connection,
    50 Hz, upstream circuit breaker protection.
    300 mA.

Adapted for chilled environment processes

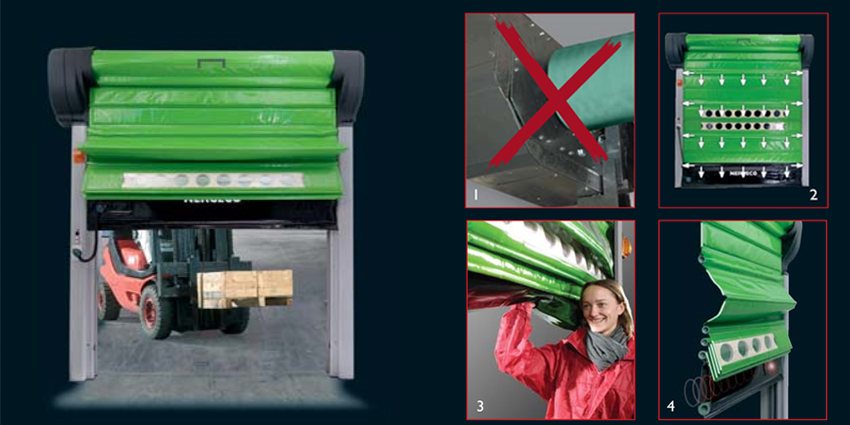

  • With no mechanical welding (1) the Star 5 Frigo 2+/+® combines a food grade, insulating double-layer curtain with sealed horizontal welds (2), and free®, multiflexible ® and compressible (3) soft bottom edge with a structure and mechanism that are smooth, waterrepellent, corrosion-free and non-thermal bridging (4).
  • Spare parts readily available from stock.
  • These latest generation materials offer performances superior to 316L stainless steel.
